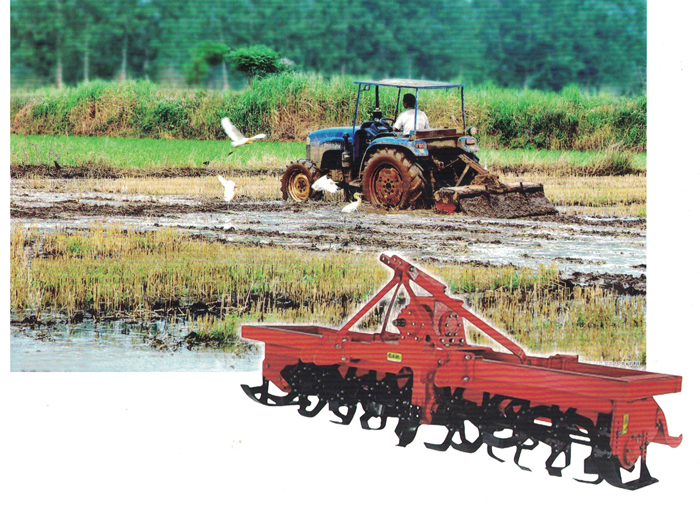

Tractor Rotary Power Tiller Blades Information:
1. With four wheel tractor or a walking tractor as the main power to drive the ortary tillage,suitable for rotacator
stubble ridging work tool
2. Material selection, 65Mn(there are also special using 60Si2Mn)
3. The hardness of heat treatment is HRC-45, the overall hear treatment,also has local heat trearment,
handle 40+3, blade 48+3.
Dimension (mm) |
|
|||||||
Type |
A |
B |
E |
F |
D |
R |
H |
|
IS150 |
25 |
10 |
55 |
25 |
10.5 |
150 |
40 |
|
IS160 |
25 |
10 |
55 |
25 |
10.5 |
160 |
40 |
|
IS175 |
25 |
10 |
55 |
25 |
10.5 |
175 |
40 |
|
IS195 |
25 |
10 |
55 |
25 |
10.5 |
195 |
40 |
|
IS210 |
25 |
10 |
55 |
25 |
10.5 |
210 |
40 |
|
IS225 |
25 |
10 |
55 |
25 |
10.5 |
225 |
40 |
|
IS245 |
25 |
10 |
55 |
25 |
10.5 |
245 |
40 |
|
IT210 |
30 |
10 |
70 |
30 |
12.5 |
210 |
50 |
|
IT225 |
30 |
10 |
70 |
30 |
12.5 |
225 |
50 |
|
IT245 |
30 |
10 |
70 |
30 |
12.5 |
245 |
50 |
|
IT260 |
30 |
10 |
70 |
30 |
12.5 |
260 |
50 |
|
216 |
23 |
7 |
55 |
22 |
10.5 |
245 |
50 |
|
522 |
25 |
10 |
55 |
25 |
10.5 |
245 |
50 |
|
581 |
25 |
10 |
55 |
25 |
10.5 |
235 |
50 |
|
582 |
25 |
10 |
55 |
25 |
10.5 |
235 |
50 |
|
681 |
25 |
8 |
55 |
22 |
10.5 |
240 |
48 |
|
● Production techniques: forging / heat treatment .
● Material selection: 65Mn (there are also using 60Si2Mn).
● The hardness of heat treatment is HRC38-48,the overall heat treatment ,also has local heat treatment ,
handle40±3 blade48±3.
● Wondee can make a special kinfe as required by customers.

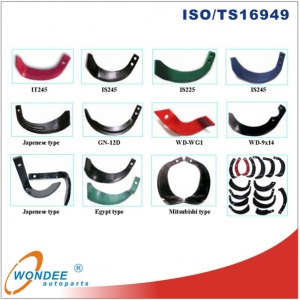

Power Tiller Blades Detail Photos:
