PRODUCTS
- China
- WONDEE
- LGJ28-B0101s
- Qingdao, Xiamen
- About 20 Working Days
- L/C, T/T, Western Union,
- Product Details

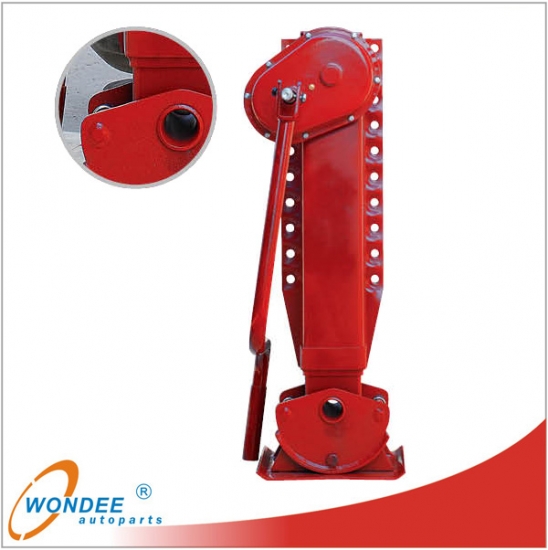

Jost type S Foot 28T Trailer Landing Gear Information:
Dimention of LGJ28-B0101S
Capacity: 28T
Static Load: 80T
Speed: Higher 9, Lower 0.9
Lift/Height: 430/843
Weight:110kg
Plate Thickness:6mm
Length: Gear bar length can be adjusted
Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers.
Gear Box: Inside & Outside
Operation: Single side & Double side
Lifting Capacity: 25 ton ~ 35 ton.
Static Load: 50 ton ~ 90ton
Gear Food Type: T, A, S, G, R
Out put: 80,000 pairs yearly
28T Trailer Landing Gear Feature:
1.Lead Screw Roll forming from extraduty feature.
2. Transmission gears made height grade alloy steel.
3.Double reduction delivers rdal power in low gear.
4.Spline shighting easy operation.
5.Dimension of connexion meets TTMA.AAR specification.
S Foot 28T Landing Gear Dimension:
Number |
Capacity |
Static Load |
Speed |
Lift |
Height |
Weight |
|
kg |
kg |
Higher |
Lower |
mm |
mm |
kg |
|
LGJ28-B0101S |
28000 |
80000 |
9 |
0.9 |
430 |
843 |
110 |
LGJ28-B0102S |
28000 |
80000 |
9 |
0.9 |
480 |
893 |
110 |
Trailer Landing Gear Drawing:
