PRODUCTS
- China
- WONDEE
- WFB3-4001
- Trailer
- Fujian, Fuzhou,Xiamen
- Red Yellow
- About 20 Working Days
- L/C, T/T, Western Union,
- Product Details
Flatbed Trailer for Sale Dimension:
MODEL |
WFB3-4001 |
L*W*H(mm) |
13000*2500*1500 |
AXLE SPACE |
6690+1310+1310 |
TARE WEIGHT (kg) |
7000 |
PAYLOAD (kg) |
33000 |
TIRES |
11R22.5;12R22.5;11.00R20;12.00R20 |
Container Flatbed Trailer for Sale Specification:
Main Frame |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes |
500mm Height āIā beam, Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm |
|
Floor |
Steel sheet 3mm thickness |
Axle |
Three units of WONDEE-13T axle |
Suspension |
WONDEE brand 3-axle suspension, American design |
Leaf Spring |
Six sets of reliable local brand, 8-piece leaf spring, 16*90mm or 100*12mm |
King Pin |
one unit of 3.5ā bolt-in kingpin |
Landing Gear |
Two-speed, manual operation, heavy duty WONDEE brand landing gear |
Wheel Rim |
13 units of 8.25-22.5 wheel rim |
Tire |
13 units of 11R22.5 tire |
Twist Lock |
Twelve nos. four nos are fasten mode, eight nos are up-down mode, of ISO twist lock for 2x20ft, 1x40ft container, central locks can be laid down. |
Spare Wheel Carrier |
One set of spare wheel carrier including a riser. |
Pneumatic Braking System |
Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber, two units of reliable local brand 45L air tank; two units of reliable local brand standard coppery air-connector. |
Electrical System |
One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of WONDEE(brand) 6-core standard Cable. |
Painting |
Sand blasting before painting; |
one coats of primer, anti corrosion; |
|
two coat of finish painting; |
|
colour advised by client |
|
Accessory |
One box with a set of standard trailer tool |

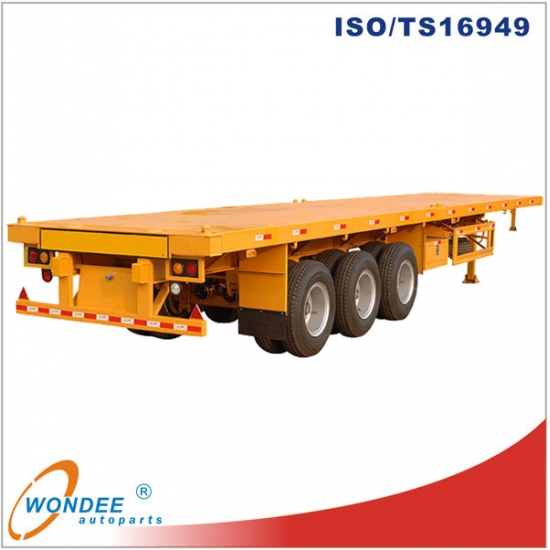

Heavy Duty Flatbed Trailer for Sale Detail Photos:
